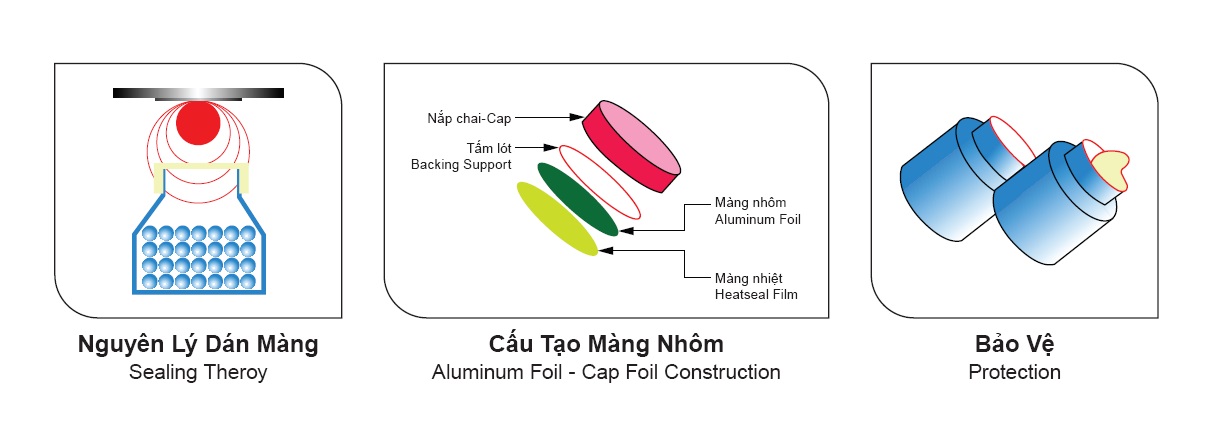

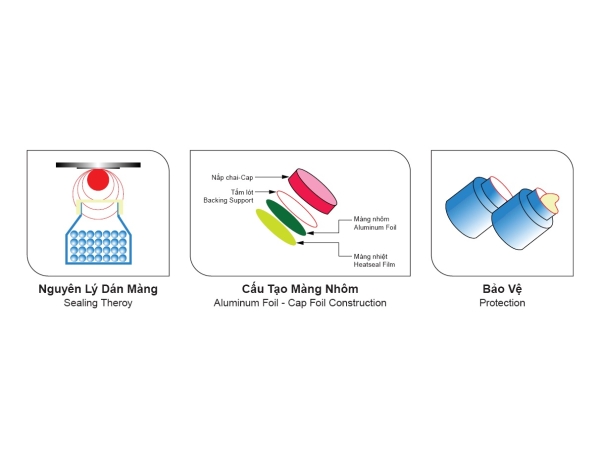

Sealing Principle

• Suitable for non-metal containers of glass or plastic bottles, such as ABS, PE (HDPE, LDPE), PET, PP, PS, PVC.
• Suitable for food, beverage, pharmaceuticals or chemical industries Bottle cap O.D. : 16-120 mm.

Features:

• Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area. The detector checks the presence of foil. It send a signal when foil is missed in a certain cap. This prevents unsealed products from being delivered. Safe in use. The machine is built with protection circuit to protect against electric current overload, voltage overload and output overload.
• Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access.
• Modular component design minimizes maintenace requirements.
• Broad range of applications can be simply setup by button.
• Solid state elements contribute high efficiency yet low power consumption.
• Quick adapters on power and control wires provide easy replacement.
• The IGBT/MOS-FET module provides high efficiency, low power consumption and long service life.
• Height of Electro-magnetic coil is adjustable, flexible for a range of bottle heights.
• Employs European plastic steel chain blocks combined with standardized accessories for long service life.

Induction aluminum foil sealing series:

• Basically, the magnetic induction sealing is a noncontact sealing operation. The bottles to be sealed are fed through a conveyor. When the bottles reach the electro-magnetic field,they will be magnetized through and electro-magnetic induction effect. The aluminum foil is quickly heated to the desired temperature. The content of the bottles is not induced by the electro magnetic field, but the heat seal film with aluminum foil attached on the cap (such as FDA approved inner seal) is induced by the electro magnetic field. When the aluminum foil is heated by the induction coil, the heat is then transferred to the heat seal film, which quickly reaches the melting point, and becomes an adhensive to bond the cap foil and bottle.
• The result is that the contents in the bottle are well protected by cap foil, excellent for pharmaceuticals, food, beverages , fuel, etc. This sealing effect not only effectively protects the products, but also prevents the products from spraying due to dropping or flowing out due to squeezing. This also provides an easy way for end users to ensure that product has not been tampered with. Additionally, the magnetic induction sealing machine reduces production and management costs.
