High speed horizontal flow wrapper (mechanical control)
VI
CHINH QUANG CO., LTD
Product portfolio

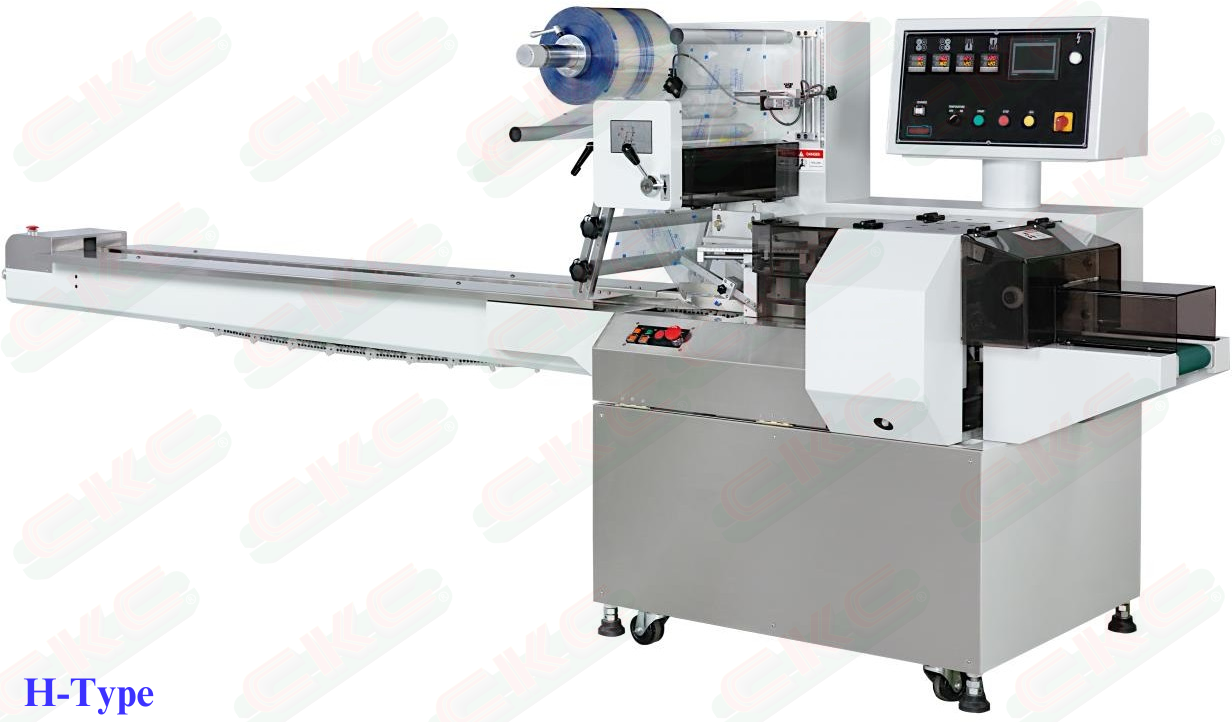

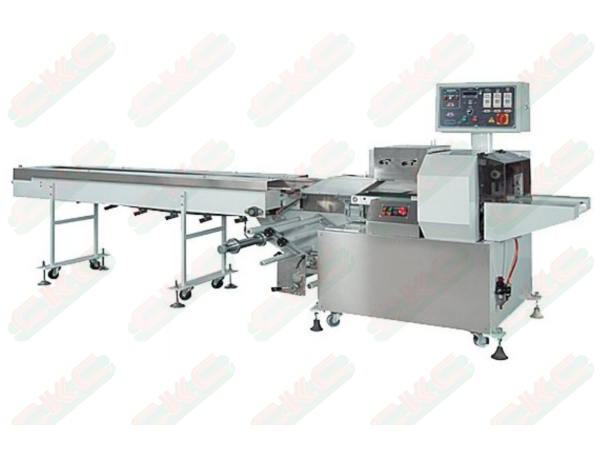

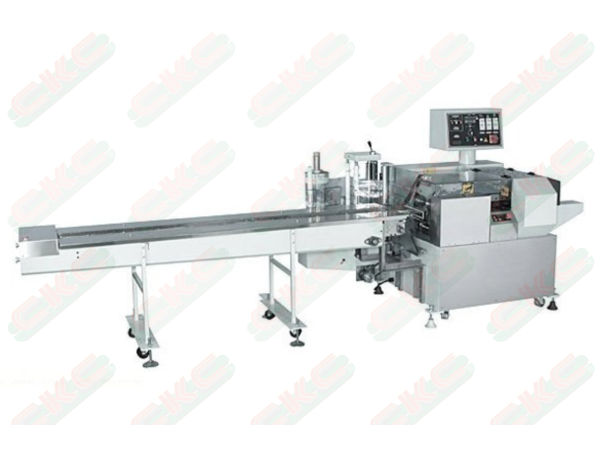

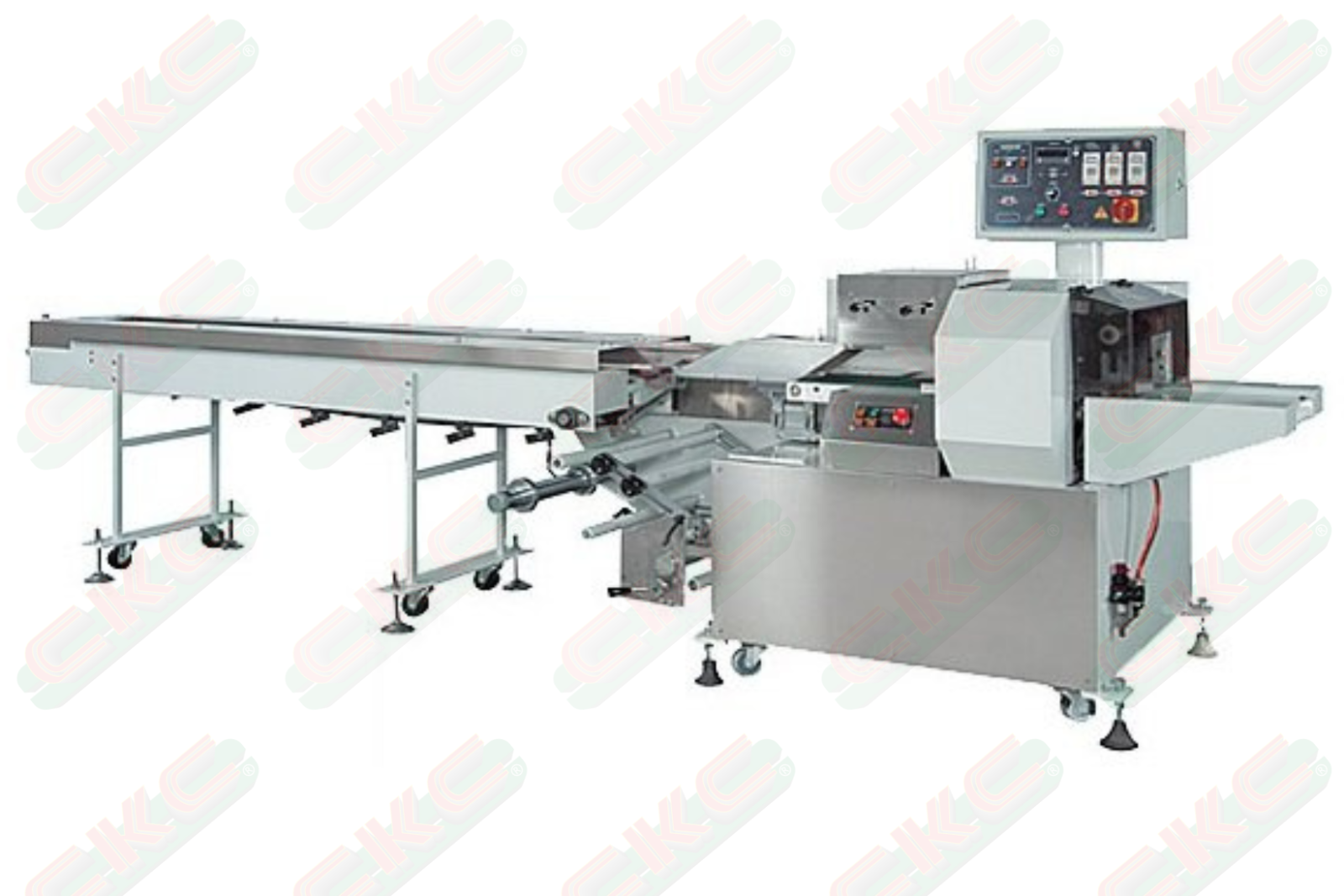

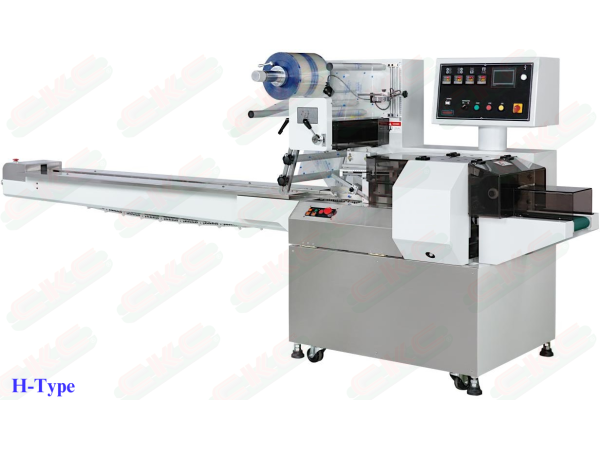

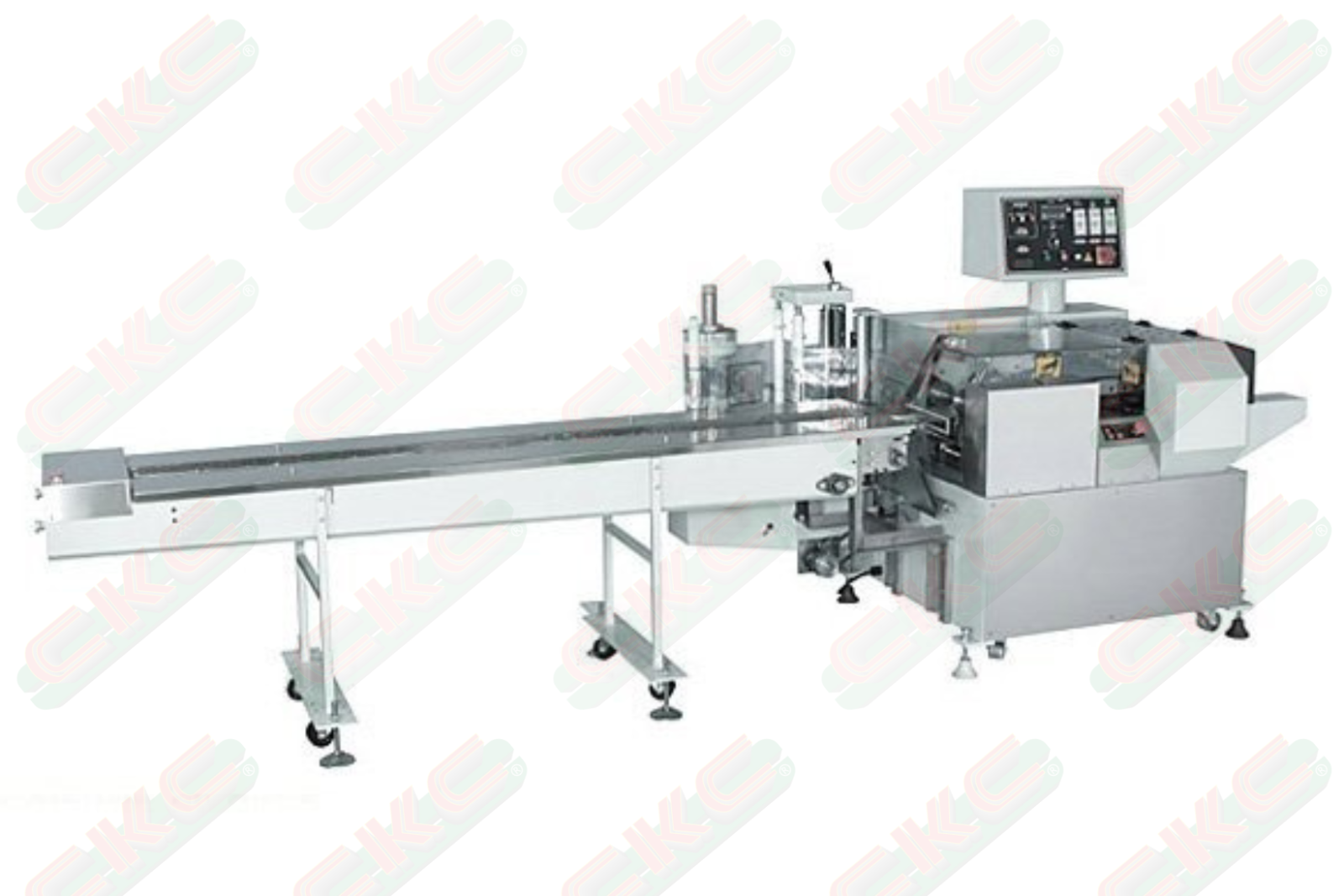

High speed horizontal flow wrapper (mechanical control)
HT-450H
Suitable product
- Cake, Instant bowl noodles, moon cakes, hot dog, boxed foods, crispy biscuits, crispy candy…
- Product requiring angular insertion
Specifications
| Operating speed | 20 ~ 150 pack/ min |
| Packaging length | 80 ~ 320 mm |
| Max. film width | 450 mm |
| Product dimensions width | 20 ~ 120 mm |
| Product dimensions heght | max 65 mm |
| Main drive motor | 1 HP |
| Heater | 800W for center sealer / 1200W for end sealer |
- Compact construction for reducing space required
- Bag length indication ensures fast and accurate length adjustment
- Specially designed feeding system is available for packaging soft and sticky products
- Equipped with precision photocell sensor for film tracing control
